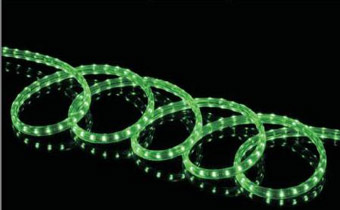

LED Line light
LED Line Light replacement of LED Strip Light
LED line light PATENT !
Replacement of the LED flexible strip light
Using by high intensity PVC jacket
cross-section size:5X8mm
input voltage : 12V, 24V, 120V, 230V.
safe enough!; application for indoor decoration, desk ,store, window, corridor and Jewellery lighting only by doubled side tape.

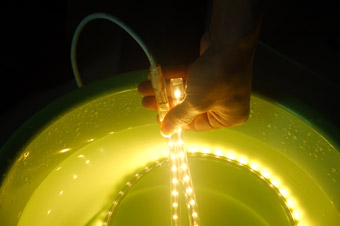

Can be waterproof IP67
Benefits:
1. Quick and easy installation. With different accessories, it can be used for different applications, such as back lighting, sidewalk, pace stair and contour illumination, etc.
2. Thin and flexible. So, it can be bent or twisted to fit your design.
3. User friendly-easy to be cut and connected.
4. Suitable for indoor and outdoor uses; Nearly free maintenance.
5. Quality PVC jacket makes it waterproof and safety
Features:
1. Bending angle: 180'
2. View angle; 150degrees light-spreading
3. Life span; 50000 to 100000 hours LED
4. Varios colors; Red, yellow, blue, green, white, warm white, RGB etc.
5. Specification: Cross section(5*8mm)
6. Votage: 12V, 24V, 120V, 230V.
7. FPC(flex circuit board) and fairly small SMD LED.a
8.IP rate :IP67
 |
 |
| Model# | Size(mm) | Voltage | LEDs space | LEDs/unit | Min Cutting Unit(cm) | LEDs/m | The actual value | Max loading length | Color |
| GP-L110624B-R | W5xH8mm | DC24V | 2.5cm | 6LEDs | 15cm | 40LEDS/m | 2.7W/m | 25m | R |
| GP-L110624B-Y | W5xH8mm | DC24V | 2.5cm | 6LEDs | 15cm | 40LEDS/m | 2.7W/m | 25m | Y |
| GP-L110624B-B | W5xH8mm | DC24V | 2.5cm | 6LEDs | 15cm | 40LEDS/m | 3.3W/m | 25m | B |
| GP-L110624B-G | W5xH8mm | DC24V | 2.5cm | 6LEDs | 15cm | 40LEDS/m | 3.3W/m | 25m | G |
| GP-L110624B-W | W5xH8mm | DC24V | 2.5cm | 6LEDs | 15cm | 40LEDS/m | 3.3W/m | 25m | W |
| GP-L110624B-WW | W5xH8mm | DC24V | 2.5cm | 6LEDs | 15cm | 40LEDS/m | 3.3W/m | 25m | WW |
| GP-L120624B-R | W5xH8mm | DC24V | 1.25cm | 6LEDs | 7.5cm | 80LEDS/m | 4.7W/m | 25m | R |
| GP-L120624B-Y | W5xH8mm | DC24V | 1.25cm | 6LEDs | 7.5cm | 80LEDS/m | 4.7W/m | 25m | Y |
| GP-L120624B-B | W5xH8mm | DC24V | 1.25cm | 6LEDs | 7.5cm | 80LEDS/m | 6.5W/m | 25m | B |
| GP-L120624B-G | W5xH8mm | DC24V | 1.25cm | 6LEDs | 7.5cm | 80LEDS/m | 6.5W/m | 25m | G |
| GP-L120624B-W | W5xH8mm | DC24V | 1.25cm | 6LEDs | 7.5cm | 80LEDS/m | 6.5W/m | 25m | W |
| GP-L120624B-WW | W5xH8mm | DC24V | 1.25cm | 6LEDs | 7.5cm | 80LEDS/m | 6.5W/m | 25m | WW |
| GP-L1106011B-R | W5xH8mm | 110~120V | 2.5cm | 60LEDs | 150cm | 40LEDS/m | 2.4W/m | 100m | R |
| GP-L1106011B-Y | W5xH8mm | 110~120V | 2.5cm | 60LEDs | 150cm | 40LEDS/m | 2.4W/m | 100m | Y |
| GP-L1103611B-B | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 3.5W/m | 100m | B |
| GP-L1103611B-G | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 3.5W/m | 100m | G |
| GP-L1103611B-W | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 3.5W/m | 100m | W |
| GP-L1103611B-WW | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 3.5W/m | 100m | WW |
| GP-L1206011B-R | W5xH8mm | 110~120V | 1.25cm | 60LEDs | 75cm | 80LEDS/m | 4.2W/m | 100m | R |
| GP-L1206011B-Y | W5xH8mm | 110~120V | 1.25cm | 60LEDs | 75cm | 80LEDS/m | 4.2W/m | 100m | Y |
| GP-L1203611B-B | W5xH8mm | 110~120V | 1.25cm | 36LEDs | 45cm | 80LEDS/m | 5.8W/m | 100m | B |
| GP-L1203611B-G | W5xH8mm | 110~120V | 1.25cm | 36LEDs | 45cm | 80LEDS/m | 5.8W/m | 100m | G |
| GP-L1203611B-W | W5xH8mm | 110~120V | 1.25cm | 36LEDs | 45cm | 80LEDS/m | 5.8W/m | 100m | W |
| GP-L1203611B-WW | W5xH8mm | 110~120V | 1.25cm | 36LEDs | 45cm | 80LEDS/m | 5.8W/m | 100m | WW |
| GP-L1106022B-R | W5xH8mm | 110~120V | 2.5cm | 60LEDs | 150cm | 40LEDS/m | 2.2W/m | 100m | R |
| GP-L1106022B-Y | W5xH8mm | 110~120V | 2.5cm | 60LEDs | 150cm | 40LEDS/m | 2.2W/m | 100m | Y |
| GP-L1103622B-B | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | B |
| GP-L1103622B-G | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | G |
| GP-L1103622B-W | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | W |
| GP-L1103622B-WW | W5xH8mm | 110~120V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | WW |
| GP-L1207222B-R | W5xH8mm | 110~120V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 4W/m | 100m | R |
| GP-L1207222B-Y | W5xH8mm | 110~120V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 4W/m | 100m | Y |
| GP-L1207222B-B | W5xH8mm | 110~120V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | B |
| GP-L1207222B-G | W5xH8mm | 110~120V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | G |
| GP-L1207222B-W | W5xH8mm | 110~120V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | W |
| GP-L1207222B-WW | W5xH8mm | 110~120V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | WW |
| GP-L1106022B-R | W5xH8mm | AC220~240V | 2.5cm | 60LEDs | 150cm | 40LEDS/m | 2.2W/m | 100m | R |
| GP-L1106022B-Y | W5xH8mm | AC220~240V | 2.5cm | 60LEDs | 150cm | 40LEDS/m | 2.2W/m | 100m | Y |
| GP-L1103622B-B | W5xH8mm | AC220~240V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | B |
| GP-L1103622B-G | W5xH8mm | AC220~240V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | G |
| GP-L1103622B-W | W5xH8mm | AC220~240V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | W |
| GP-L1103622B-WW | W5xH8mm | AC220~240V | 2.5cm | 36LEDs | 90cm | 40LEDS/m | 2.8W/m | 100m | WW |
| GP-L1207222B-R | W5xH8mm | AC220~240V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 4W/m | 100m | R |
| GP-L1207222B-Y | W5xH8mm | AC220~240V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 4W/m | 100m | Y |
| GP-L1207222B-B | W5xH8mm | AC220~240V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | B |
| GP-L1207222B-G | W5xH8mm | AC220~240V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | G |
| GP-L1207222B-W | W5xH8mm | AC220~240V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | W |
| GP-L1207222B-WW | W5xH8mm | AC220~240V | 1.25cm | 72LEDs | 90cm | 80LEDS/m | 5.5W/m | 100m | WW |
