LED Rope Light

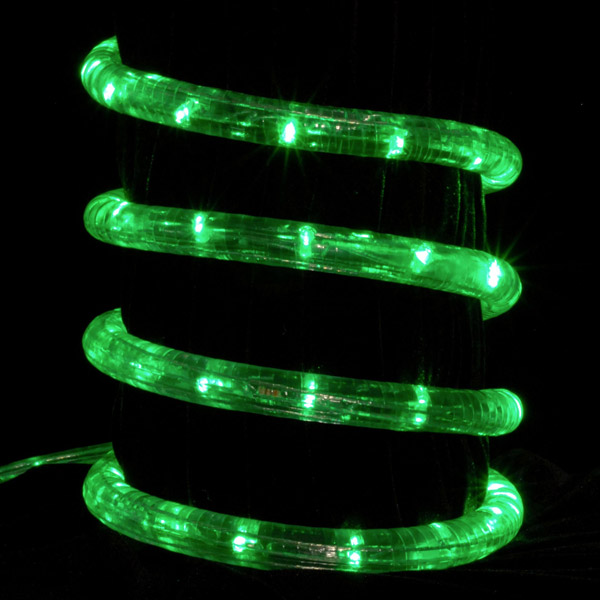

Green LED Rope Light,Ø13mm
Main Features
1,Ø13mm with 2-Wire,single row Steady Burn Green LEDs
2,220~240V
3,Wavelength: 525-530 nm
4,Luminous Intensity: 5400-5500 mcd
5,Beam Angle: 25°
6,Forward Current: 20mA
7,Clear Outer Tubing
8,27.7mm LEDs Spacing
9,Indoor/Outdoor
10,Energy Efficient - Only consumes 4.8W/m
11,Cuttable every 2m
12,Maximum operating length of 300m
13,Lifespan of 80,000 hours
14,Temperature Rating of -20 ℃ ～50 ℃
15,Dimmable
16,Comes pre-assembled with a power cord, power connector, and end cap
| Model# | Size (mm) | Voltage | LEDs Space | LEDs/m | Min Cutting Unit | watts/m | Color | Max loading length |
| GP-2W3624B-C | Ø13mm | 24V | 27.7mm | 36pcs | 9LEDs | 1.92W/m | R,Y | 30m |
| 6LEDs | 2.88W/m | B,G,W | ||||||
| GP-2W3611B-C | Ø13mm | 120V | 27.7mm | 36pcs | 1m | 2.4W/m | R,Y | 200m |
| B,G,W | ||||||||
| GP-2W3622B-C | Ø13mm | 240V | 27.7mm | 36pcs | 2m | 4.8W/m | R,Y | 300m |
| B,G,W | ||||||||
| GP-3W7224B-C | 11*18mm | 24V | 27.7mm | 72pcs | 9LEDs | 3.84W/m | R,Y | 15m |
| 6LEDs | 5.76W/m | B,G,W | ||||||
| GP-3W7211B-C | 11*18mm | 120V | 27.7mm | 72pcs | 1m | 4.8W/m | R,Y | 100m |
| B,G,W | ||||||||
| GP-3W7222B-C | 11*18mm | 240V | 27.7mm | 72pcs | 2m | 9.6W/m | R,Y | 150m |
| B,G,W | ||||||||
| GP-4W10824B-C | 11*22mm | 24V | 27.7mm | 108pcs | 9LEDs | 5.76W/m | R,Y | 10m |
| 6LEDs | 8.64W/m | B,G,W | ||||||
| GP-4W10811B-C | 11*22mm | 120V | 27.7mm | 108pcs | 1m | 7.2W/m | R,Y | 65m |
| B,G,W | ||||||||
| GP-4W10822B-C | 11*22mm | 240V | 27.7mm | 108pcs | 2m | 14.4W/m | R,Y | 100m |
| B,G,W | ||||||||
| GP-5W14424B-C | 11*28mm | 24V | 27.7mm | 144pcs | 9LEDs | 7.68W/m | R,Y | 6m |
| 6LEDs | 11.52W/m | B,G,W | ||||||
| GP-5W14411B-C | 11*28mm | 120V | 27.7mm | 144pcs | 1m | 9.6W/m | R,Y | 50m |
| B,G,W | ||||||||
| GP-5W14422B-C | 11*28mm | 240V | 27.7mm | 144pcs | 2m | 19.2W/m | R,Y | 100m |
| B,G,W |
